Robust 100KWh LiFePO4 ESS Energy Storage System Harsh Environment Adaptable For Industrial Warehouse Usage

Robust 100KWh LiFePO4 ESS Energy Storage System Harsh Environment Adaptable For Industrial Warehouse Usage
Robust 100KWh LiFePO4 ESS Energy Storage System Harsh Environment Adaptable For Industrial Warehouse Usage Robust 100KWh LiFePO4 ESS Energy Storage System Harsh Environment Adaptable For Industrial Warehouse Usage

大画像 :  Robust 100KWh LiFePO4 ESS Energy Storage System Harsh Environment Adaptable For Industrial Warehouse Usage

商品の詳細:
起源の場所: 中国
ブランド名: KM
証明: CE, FCC, UKCA, CB
モデル番号: 100kwh
お支払配送条件:
最小注文数量: 1
価格: USD1-100/pcs
パッケージの詳細: 標準的な国際カートン梱包
受渡し時間: 一般的に 2 週間、正確な量に基づいてさらに多くの量
供給の能力: 10000個/月
連絡先

Robust 100KWh LiFePO4 ESS Energy Storage System Harsh Environment Adaptable For Industrial Warehouse Usage

説明
公称容量: 280ah 正味重量: 1750 kg
吐出量: 0.5℃ 動作温度: -25℃～60℃
寸法: 1200×1355×2150mm 名目エネルギー: 107.52KWh
公称電圧: 384V PVは入った: 50kWp
PV電圧: 200～600V AC出力: 50kW、72A、154～276V、三相
電池のタイプ: LiFePO4 サイクル寿命: 長さ

Robust 100KWh LiFePO4 ESS Energy Storage System
Harsh Environment Adaptable For Industrial Warehouse Usage
Product Features
  • Integrated all-in-one cabinet design, built-in PCS, BMS, EMS and thermal management system
  • High-safety LiFePO4 lithium iron phosphate battery cells
  • Intelligent battery management system (BMS) for cell balance, overcharge & over-discharge protection
  • Independent energy management system (EMS) supports remote monitoring & data interaction
  • Wide operating temperature range: -25℃ ~ 60℃, adapt to complex harsh environments
  • Support PV direct access: 50KWp, PV voltage range 200~600V
  • Three-phase AC output, compatible with commercial and industrial power grid standards
  • Scalable design, multiple cabinets can be paralleled to expand energy storage capacity
  • Built-in emergency stop EPO function, multi-layer electrical safety protection
  • Low maintenance design, long cycle life for continuous commercial operation
Technical Specifications
Model 100 kWh ESS Battery
Nominal Voltage 384V
Nominal Capacity 280Ah
Nominal Energy 107.52 kWh
Discharge Rate 0.5C
Dimensions 1200 × 1355 × 2150 mm
Net Weight 1750 kg
PV Input 50 kWp (kilowatt peak)
Voltage range: 200~600V
AC Output 50 kW, 72 A, 154~276V, three-phase
Operating Temperature -25°C to 60°C
Core Advantages
Save Electricity Cost
Realize peak shaving & load shifting, cut industrial and commercial electricity expense significantly
Stable Renewable Energy Storage
Store surplus solar power for night or cloudy day usage, maximize PV income
Reliable Emergency Backup Power
Protect critical production equipment from unexpected power outages
High Safety Standard
LiFePO4 cells + multi-level protection system avoid thermal runaway risks
Strong Environmental Adaptability
Work normally under extreme low and high temperature conditions
Flexible Capacity Expansion
Parallel connection supports large-scale energy storage microgrid projects
All-in-one Integrated Cabinet
Simplify installation, reduce extra construction and equipment matching cost
Carbon Neutral Solution
Help enterprises integrate clean energy, lower carbon footprint and meet sustainability targets

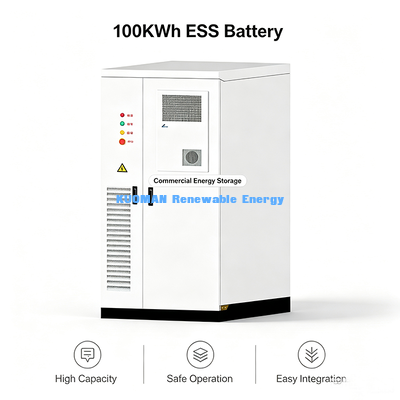

100KWh LiFePO4 Energy Storage System cabinet and technical diagram
Frequently Asked Questions
What is the actual usable energy of this 100KWh ESS system?
The nominal energy reaches 107.52KWh. It adopts 0.5C continuous charge & discharge design, meeting daily commercial energy storage demand.
Can this energy storage cabinet connect to solar panels directly?
Yes. Built-in PV access port supports 50KWp solar panel input with 200~600V DC voltage range, no extra external inverter required.
Is this ESS suitable for outdoor installation?
The cabinet supports indoor installation. If deployed outdoors, a sunshade and rainproof shelter is recommended to extend service life.
Can multiple 100KWh energy storage cabinets be connected in parallel?
Yes. The system supports parallel expansion. We can customize solutions according to your total energy storage capacity requirements.
