商品の詳細:
|
| 公称電圧: | 48V | 最大充電電流: | 200A |
|---|---|---|---|
| 公称容量: | 200Ah | バッテリーのサイズ: | 618*480*248mm |
| 名目エネルギー: | 10240Wh | 正味重量: | 85kg |
| 細胞の種類: | lifepo4 細胞 | 標準充電電流: | 100A |
| 締切り電圧の排出: | 56.2V | 最高の連続的な放出流: | 200A |
| 放電電流: | 10A | ターミナル: | 高速プラグイン |
| ハイライト: | 48V 200Ah LiFePO4 powerwall battery,home solar storage battery with Bluetooth,UL approved LiFePO4 powerwall battery |
||
✅ Cheaper factory direct price: 10-year lithium battery manufacturer with long-term strategic cooperation with cell & BMS suppliers, cutting intermediate costs to offer unmatched wholesale pricing
✅ Slimmer installation size: Only 14cm thickness vs thick traditional powerwalls, easier indoor wall mounting
✅ Longer cycle life: 8000 cycles vs 3000–5000 cycles of generic lithium batteries
✅ More flexible charging & discharging: 200A max charge/discharge, 400A short peak current for heavy home appliances
✅ Wider temperature adaptability: Discharge works normally down to -20℃, suitable for cold northern regions
✅ One-stop customization support: Custom casing, communication modules, capacity combinations for distributors & installers

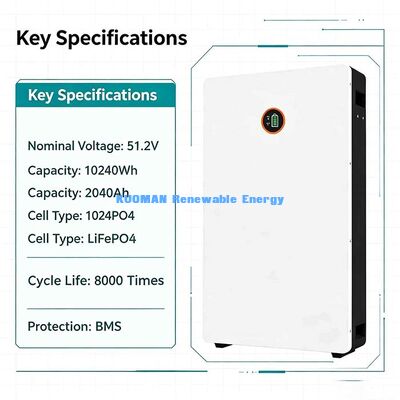

| Specification | Details |
|---|---|
| Product Model | KM48V200R |
| Nominal Voltage | 51.2V |
| Nominal Capacity | 200Ah |
| Nominal Energy | 10240Wh |
| Cell Type | LiFePO4 Cell |
| Standard Charging Current | 100A |
| Max Charging Current | 200A |
| Discharging Cut-off Voltage | 56.2V |
| Max Continuous Discharging Current | 200A |
| Discharging Current | 10A |
| BMS Protection | Overcharging/over-discharging, Over-voltage/Over-current, Short Circuit, etc. |
| Case Material | Metal/Custom material |
| Terminal | Fast plug-in |
| Battery Size | 618*480*248mm |
| Net Weight | 85kg |
| Communication | CAN/RS485/RS232/Bluetooth (optional) |
| Shipping Method | Sea/Air/Railway |
| Delivery Time | Quantity within 100pcs: 5-12 days |
A: It works with solar panel arrays, diesel generators and municipal grid power. It supplies stable backup power for home refrigerators, air conditioners, lights, water pumps and essential household loads up to 10kW total power demand. Compatible with most mainstream 48V solar hybrid inverters.
A: Our EVE A-grade LiFePO4 cell design delivers more than 8000 deep discharge cycles, equivalent to over 10 years of daily regular use, much longer than lead-acid or low-grade lithium batteries.
A: Yes. LiFePO4 material features extremely low thermal runaway risk, plus built-in intelligent BMS with full overcharge/short-circuit/temperature protection. It holds CE, UL, RoHS global safety certifications, safe for bedroom, garage and utility room wall mounting.
A: Yes. Multiple units can be parallel connected to expand total storage capacity and power output. Optional CAN/RS485 communication ports realize unified battery monitoring for the whole battery bank.
A: Charging environment: 0℃ ~ 55℃; Discharging environment: -20℃ ~ 60℃. It can stably supply power in cold winter areas and hot tropical regions.
