商品の詳細:
|
| 公称電圧:: | 51.2V 400Ahバッテリー | わずかな容量:: | 200Ah～400Ah |
|---|---|---|---|
| 公称エネルギー:: | 10.24KWh～20.48KWh | 寸法：: | 640*375*210mm(単一モジュール) |
| インストール: | モバイル搭載型 | 年数サイクル寿命: | 6000 サイクル @25°c 0.2c、80%dod |
| インバータ: | 内蔵か外蔵か | サイクルライフ: | 5000～10000サイクル |
| 寸法: | 600*210*300mm(単一モジュール) | 効率: | 90% |
| 動作温度: | -4°F ～ 113°F | 電圧: | 350〜450V |
| コミュニケーション: | Wi-Fi、イーサネット、またはセルラー | 名目エネルギー: | 10.24KWh～30.72KWh |
| モデル: | パワーウォール | 公称電圧: | 51.2V |
| 互換性: | ソーラーパネルとグリッド | サイズ: | 500*258*683/898/1113/1328/1543/1758mm |
| インバーター互換性: | ほとんどのインバーターと互換性があります | 名前: | 家電池の貯蔵 |

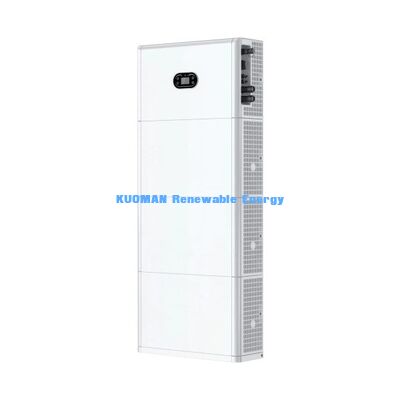

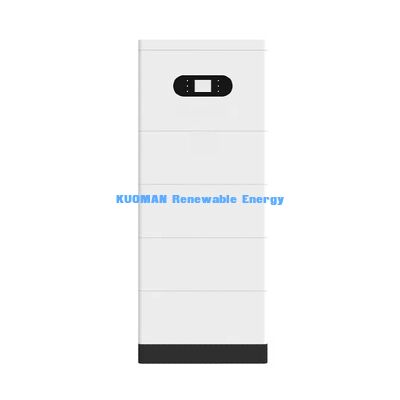

KM 48V 300Ah LiFePO4 Home Power Battery System Wall Mount Deep Cycles 8000 Times
Reliable Power Supply: Ensures a stable and consistent energy supply for your home, even during power outages.
Eco-Friendly: Ideal for use with solar panels, reducing reliance on fossil fuels and lowering your carbon footprint.
Cost-Effective: Long cycle life and low maintenance requirements result in lower overall costs over time.
Versatile: Suitable for a variety of applications, including off-grid living, backup power, and peak shaving.
Residential Energy Storage: Perfect for storing solar energy for use during the night or during power outages.
Off-Grid Systems: Provides reliable power in remote locations without access to the grid.
Backup Power: Ensures uninterrupted power supply during grid failures.
Modular and Scalable Design:
The battery system is stackable, allowing you to expand capacity as your energy needs grow.
Suitable for small to large residential energy storage systems.
High-Quality LiFePO4 Cells:
Utilizes LiFePO4 (Lithium Iron Phosphate) chemistry, known for its safety, long cycle life, and thermal stability.
Intelligent BMS (Battery Management System):
Ensures safe and efficient operation with comprehensive protection features.
Provides real-time monitoring of battery status (voltage, current, temperature, etc.).
Wide Range of Capacities:
Available in multiple capacities (from 200Ah to 600Ah), making it adaptable to different energy storage requirements.
Compact and Lightweight:
Designed to save space and simplify installation.
Each module weighs only 48 kg, making it manageable for residential setups.
Multiple Communication Options:
Supports CAN, RS485, RS232, and optional Bluetooth for seamless integration with inverters, solar charge controllers, and monitoring systems.
Certifications and Safety:
Complies with international standards (e.g., CE, RoHS, UL).
LiFePO4 chemistry ensures high safety with minimal risk of fire or explosion.
Long Cycle Life:
Designed for 8000+ cycles at 80% depth of discharge (DoD), ensuring a lifespan of over 10 years with proper maintenance.
| Product Model | KM51.2V400P2 |
| Nominal Voltage | 51.2V |
| Nominal Capacity | 100Ah |
| Cell Type | LiFePO4 Cell |
| Charging Cut-off Voltage | 44.8V~56.16V |
| Dimension | 640*375*210mm |
| Battery Energy Choice | 5.12KWh/10.24KWh/15.36KWh/20.48KWh |
| Cycle Life | 6000cylces @25℃,0.5C 80% DOD |
| Inverter | |
| Power Choice | 4.5KW~9KW |
| Input(PV ) | |
| Max PV Input Power | 4.5KW/5.4KW/6KW/6.9KW/7.5KW/9KW |
| Max PV Input Voltage | 600V |
| MPPT Voltage Range | 100V~550V |
| Max PV Input Current | 16A |
| Max Short Circuit Current/MPPT | 24A |
| Output(AC) | |
| Rated Output Power | 3KW/3.68KW/4KW/4.6KW/5KW/6KW |
| Max Output Power | 3.3KVA/3.68KVA/4.4KVA/4.6KVA/5.5KVA/6KVA |
| Max Output Current | 15A/16A/20A/20.9A/22.7A/26.1A |
| Rated Voltage | 230V |
| Efficiency | |
| Max Efficiency | 97.50% |
| Max Battery Charge/Discharge Efficiency | 95% |
| General Data | |
| Internal Resistance | ≤40 mΩ |
| Self Consumption | ≤10W |
| Communication | CAN/RS485/RS232 |
| Warranty | 10 years |
| Protection Degree | IP65 |
