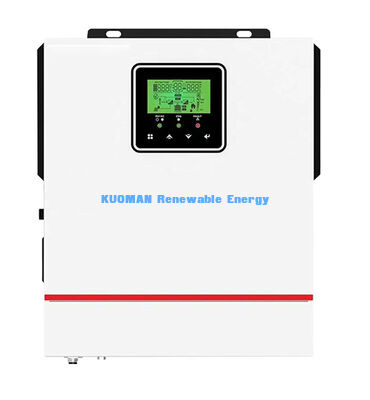

Off-Grid Inverter with MPPT & App Control | 230VAC Output Home Backup 1000W/1500W

オンラインです

Off-Grid Inverter with MPPT & App Control | 230VAC Output Home Backup 1000W/1500W

Off-Grid Inverter with MPPT & App Control | 230VAC Output Home Backup 1000W/1500W
Off-Grid Inverter with MPPT & App Control | 230VAC Output Home Backup 1000W/1500W

大画像 :  Off-Grid Inverter with MPPT & App Control | 230VAC Output Home Backup 1000W/1500W

商品の詳細:
起源の場所: 中国
ブランド名: KUOMAN
モデル番号: 1000W/1500W

Off-Grid Inverter with MPPT & App Control | 230VAC Output Home Backup 1000W/1500W

説明
サイズ: 550*520*310--588*415*200MM 重さ: 25KG
タイプ: 格子太陽系 出力周波数: 50Hz/60Hz、50/60HZ(自動検知)
出力電流: 16.2A/相 出力電圧: 110V/220V/230V/240V
出力電力: 1〜200KW 応用: 家庭用、太陽光発電システム家庭用、グリッドタイソーラーパネルシステム
画面: LCDディスプレイ 製品名: オフグリッド オフグリッド ハイブリッド MPPT ソーラーインバータ
保護: 過負荷/過電圧/出力短絡 出力波形: 純正弦波出力

Off-Grid Inverter with MPPT & App Control | 230VAC Output Home Backup 1000W/1500W



Product Features & Specifications:

Our inverter combines intelligent design with powerful performance, as detailed in the technical parameters:



  • Dual Model Options:​ Choose between the BSSI-IV-S1000 (1000VA/1000W)​ and BSSI-IV-S1500 (1500VA/1500W)​ to match your energy needs.
  • High-Efficiency Conversion:​ Exceptional peak efficiency of 98% (PV to AC)​ and 94% (Battery to AC), maximizing the usable power from your solar panels and battery bank.
  • Advanced MPPT Solar Charger:​ Built-in Maximum Power Point Tracking technology optimizes energy harvest from your solar panels (MPPT Range: 20-150VDC, Max Array Power: 600W).
  • High-Current Charging:​ Supports a maximum solar charge current of 40A​ and a combined maximum charging current (Solar + AC) of 80A​ for rapid battery replenishment.
  • Pure Sine Wave Output:​ Delivers stable, high-quality 230VAC ±5% electricity, safe for sensitive electronics like personal computers and home appliances.
  • Intuitive LCD Display:​ Monitor key metrics like output power (e.g., 800.0W), battery status, solar input, and grid connection at a glance.
  • Flexible Connectivity & Control:​ Equipped with RS232/WiFi​ communication ports for system monitoring and control via a mobile app.
  • Versatile Installation:​ Designed for wall-mounting, with options for wheeled carts, cabinets, or stackable configurations to suit any space.
  • Robust Protection:​ Comprehensive safety features including overload, short-circuit, and over-temperature protection, with certifications including EN62109.
Typical Application Scenarios:
  • Residential Off-Grid Homes:​ The perfect all-in-one power hub for remote homes, cabins, or RVs.
  • Solar Backup Power Systems:​ Keep critical loads (refrigerators, lights, routers) running during blackouts.
  • Small Businesses & Remote Sites:​ Provide reliable power for shops, telecom sites, or agricultural operations.
  • Emergency Power Supply:​ A dependable backup for sump pumps, medical devices, and security systems.
FAQ
  • Q: Can this inverter power my entire house?
    • A: It can power essential circuits and appliances. The total load must not exceed the inverter's rated power (1000W or 1500W). A professional can help design a system with critical load panels.
  • Q: What batteries are compatible?
    • A: It is compatible with 12V or 24V battery banks (lead-acid or lithium). The charger supports configurable floating/overcharge voltages (e.g., 13.5VDC/16VDC for 12V).
  • Q: Is professional installation required?
    • A: Yes.​ Dealing with high-voltage AC/DC electricity requires a certified electrician or solar installer for safety and compliance with local codes.
  • Q: What does the WiFi/App control allow me to do?
    • A: You can monitor real-time power flow, battery level, and historical data, and often adjust settings remotely from your smartphone.
  • Q: Can I connect it to both solar panels and the grid?
    • A: Yes. The inverter uses solar as the primary source, with the grid or generator as a backup charging source when solar is insufficient, ensuring your batteries are always charged
