商品の詳細:
|
| パネル寸法: | 115*98.5センチメートル | ブランド名: | KUOMAN |
|---|---|---|---|
| 作業時間（h）: | 24時間 | 材料: | 多ケイ素 |
| 色: | 黒 | 最大。力: | 200W |
| 名前: | 適用範囲が広い太陽電池パネル |

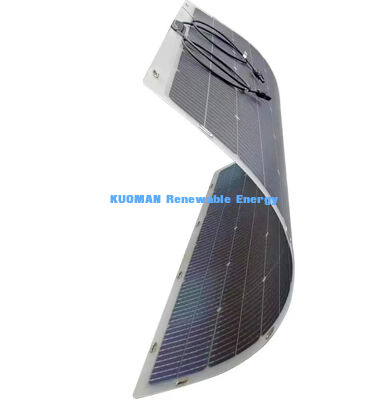

360 Degree Bendable bifacial flexible solar panel 200W FFC and carbon fiber
Advantage of 200W flexible solar panel :
1)Ultra thin and light;
2)IP68 waterproof level;
3)With long time life span;
4)Full power output;
5)Multifuntion port for more different devices,like 24V battery,power station,power generator,powerbank;

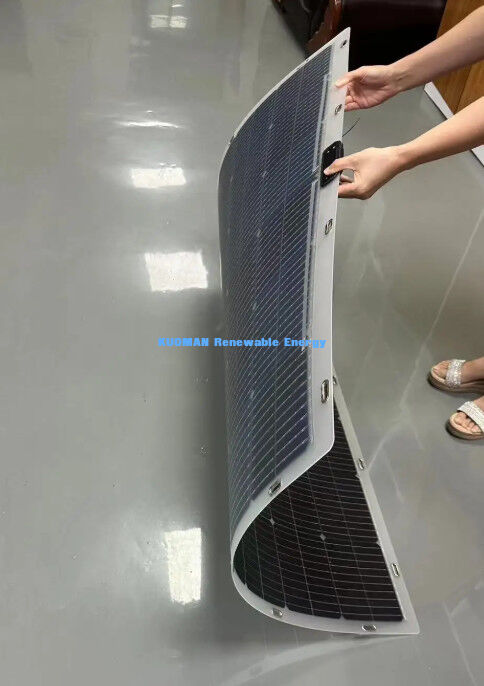

6)Can be bent to 360°;
7)Don't worry the solar cell with damage to lead to short current and fire risk--safe and stable;
8)With transparent material with bifacial function ;
9)with CE,ROHS,FCC certification;
10)With short leading time for 500-1000PCS for only 20 days.
Flexible solar panel Details Specification:
| Output Power(@STC ) | 210.0 W ±5% |
| Open Voltage(@STC) | 48.9V ±5% |
| Standard Voltage(@STC) | 40.0V ±5% |
| Standard Current(@STC) | 5.3A ±5% |
| Short Circuit(@STC) | 5.7A ±5% |
| Denier type eyelets | Inner-Diameter:6*25mm,Outer diameter:10*30mm,silver color |
| Accessories | Converge MC4 cable,14AWG |
Details of 200W flexible solar panel shown:
1.Fully waterproof conjunction box with silicon glue,specially with diode built in toavoid conversed connection;
2. Eyelet with Larger size ,easy to fix ;
3. 10PCS of eyelets left for multiple location to fix;
4.High efficiency solar cell up to 23% ;5.Universal and robust MC4 connector.
Flexible Solar Panel Specification:
| Brand Name | KUOMAN SOLAR |
| Model Number | KM FL210W |
| Material | FFC compound material+EVA+Mono solar cell+EVA+Carbon Fiber |
| Color | White/Black |
| Cell size | 182mmx182mm |
| Panel Dimensions | 115*98.5CM |
| Panel Efficiency | >=23% |
| OEM/ODM | Availble |
| Warranty | 1year |
FAQ
1.Can you supply OEM &ODM service ?
A:Yes, only MOQ regards.
2.What's kind of certificates and patent your products have acquired ?
A:1) Full of CE,ROHS,FCC,PSE,UL.2)Utility model of China and Appearance Patent of Europe.
3.Can I test the sample?
A:Yes,we can supply one sample to test with charge,and refunded of product itself on mass order.
